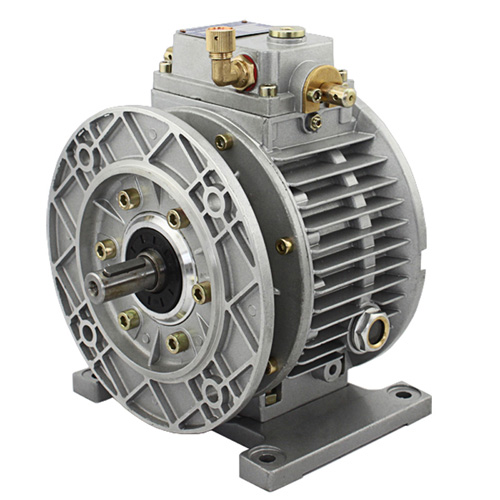

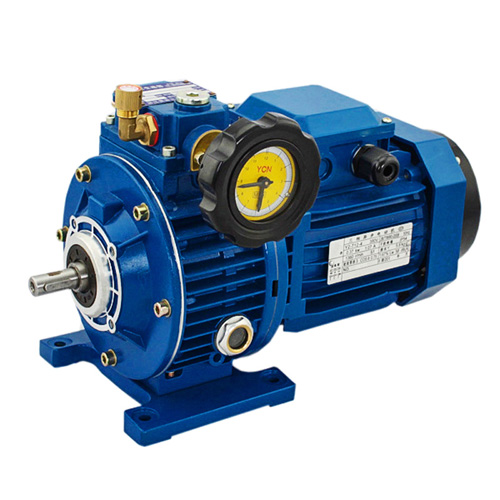

MB(UD) series variable gearbox

Item No.: MB(UD) series
Type and specification:
MB(C)02,MB(C)04,MB(C)07,MB(C)15,MB(C)22,MB(C)40,MB55,MB75
Description

Main parameters:
Basic type output speed: 4P:200~1000rpm, 6P:130~650rpm.
Output torque: up to 350N.M
Motor power: 0.12~7.5kw
Installation way: horizontal or vertical.

Product features:
1. The MB series inverter is a continuous mechanical inverter designed by the planetary friction transmission principle. Convenient maintenance, simple operation.
2. High-speed regulation precision, stable performance, and wide speed variation range, can be combined with other series gearboxes.
3. The products have been mainly used in machinery fields such as printing and packaging, food and beverage, pharmaceutical chemicals, leather, shoes, etc.

Quick selection:
Basic model

Model MB(N)02 MB(N)04 MB(N)07 MB15 MB22 MB40 MB55 MB75
4P Input power
(kW)
0.12 0.18 0.25 0.37 0.55 0.75 1.1 1.5 2.2 3 4 5.5 7.5
6P Input power
(kW)
    0.18 0.25 0.37 0.55 0.75 1.1 1.5 2.2 3 4 5.5
Permitted Torque
(Nm)
1-2 1.5-3 2-4 3-6 5-10 6-12 9-18 12-24 18-36 24-48 32-64 45-90 59-118
Output speed
(rpm)
When motor speed(4P)= 1400rpm: output speed=1000-200rpm
When motor speed(6P)= 960rpm: output speed = 650-130rpm
Weight (Kgs) 10 13 17 35 65 110 110

Note: the weight is for the main model, without oil and motor.

Single-stage gear drive model

Model MB02-C MB04-C MB07-C MB15-C MB22-C MB40-C MB55-C MB75-C
4P Input power
(kW)
0.12 0.18 0.25 0.37 0.55 0.75 1.1 1.5 2.2 3 4 5.5 7.5
6P Input power
(kW)
    0.18 0.25 0.37 0.55 0.75 1.1 1.5 2.2 3 4 5.5
Ratio Motor poles Output speed
(rpm)
Permitted Torque (Nm)
1.5 4P 665-133 1.4-2.8 2.1-4.2 2.8-5.6 4.2-8.4 7.0-14 8.5-17 12.5-25 17-34 25.5-51 34-68 45.4-91 64-128 84-168
6P 430-86
2.5 4P 400-80 2.35-4.7 3.55-7.1 4.75-9.5 7.1-14.2 11.8-23.6 14.2-28.4 21.3-42.6 28.5-57 42.5-85 57-114 76-152 106-212 140-280
6P 260-52
3.3 4P 300-60 3.3-6.6 4.75-9.5 6.2-12.4 9.5-19 15.5-31 19-38 28-56 37.5-75 56.5-113 75-150 99.5-199 140-280 184-368
6P 200-40
5 4P 200-40 4.75-9.5 7.1-9.5 9.5-19 14.2-24.8 23.5-47 28.5-57 42.5-85 57-114 85.5-171 114-228 152-304 213-426 280-560
6P 130-26
Weight (Kgs) 16 17 23 40 75 125 125

Note: the weight is for the main model, without oil and engine
