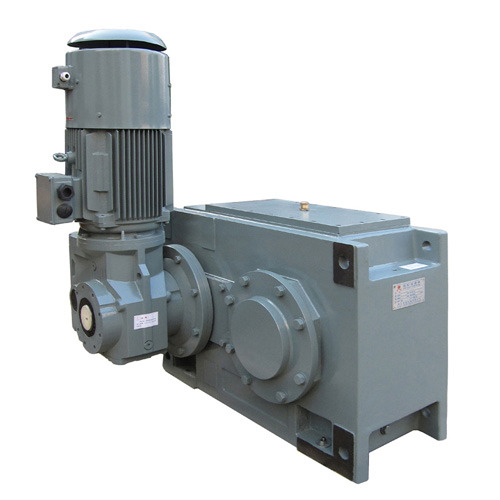

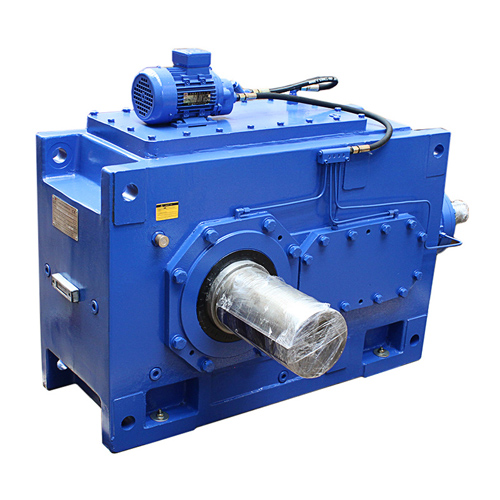

BC Series: High-Power Right Angle Shaft Industrial Gear Unit

Item No.: BC series
Elevate your industrial capabilities with the BC Series Gear Unit. Engineered for heavy-duty applications, this right angle shaft gear unit combines robust performance with precision engineering.

BC Series: The Ultimate Solution for Heavy-Duty Industrial Applications


Introducing the BC Series, a pinnacle of gear unit technology designed for the most demanding industrial tasks. With its right angle shaft, this gear unit is your ally in achieving unparalleled efficiency and reliability.


Designed for Excellence


1、Robust and Compact Construction

Featuring hard teethface helical gear with a compact, blocking design, the BC Series gear unit ensures steady operation and a shorter manufacturing period, making it a swift solution for your industrial needs.

2、Unmatched Performance

With a torque range up to 470kNm and power capacity up to 4823KW, the BC Series stands out in heavy industrial fields like mining, petrochemical, and power generation, offering a seamless blend of power and efficiency.

3、Advanced Material and Heat Treatment

The gears, made from 20CrMnTi alloy steel, undergo rigorous tempering, cementing, and quenching to achieve hardness levels of HRC58°~62°, ensuring longevity and resilience under high loads.

Specifications Overview

  • Ratio range: 1.25~450
  • Output torque: 0.8~470kNm
  • Motor power: 2.8~4823KW
  • Installation Form: Horizontal, Vertical, Shaft installation and shrink disk installation

Product features:
1. BC series gearbox is a right angle shaft heavy load industrial gearbox designed as hard teethface helical gear. The period of designing and manufacturing are shorter because of the blocking design.
2. The feature is compact construction, steady running. It can bear huge road of industry, insteaded of early international standard gearbox.
3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° .after tempering, cementiting, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5.
4. The products have been mainly used in heavy industrial fields, such as mine, petrochemical, electric power, metallurgy etc.
Stage: 1~4 stage
Type size: 03~26

Shaft model:

 1. the "→" means the input direction of drive shaft of the working machinery.
              2. E,F for special models.


The weight of main unit:

Model BC2-01 BC2-02 BC2-03 BC2-04 BC2-05 BC2-06 BC2-07 BC2-08 BC2-09 BC2-10
Weight(KG) 65 90 140 235 360 410 615 700 1000 1156
Model BC2-11 BC2-12 BC2-13 BC2-14 BC2-15 BC2-16 BC2-17 BC2-18
Weight(KG) 1640 1910 2365 2750 3795 4160 5320 5860
Model BC3-03 BC3-04 BC3-05 BC3-06 BC3-07 BC3-08 BC3-09 BC3-10 BC3-11 BC3-12
Weight(KG) 130 210 325 380 550 635 890 1020 1455 1730
Model BC3-13 BC3-14 BC3-15 BC3-16 BC3-17 BC3-18 BC3-19 BC3-20 BC3-21 BC3-22
Weight(KG) 2260 2615 3540 3765 4760 5240 6050 6710 8190 8950
Model     BC4-05 BC4-06 BC4-07 BC4-08 BC4-09 BC4-10 BC4-11 BC4-12
Weight(KG)     335 385 555 655 890 1025 1485 1750
Model BC4-13 BC4-14 BC4-15 BC4-16 BC4-17 BC4-18 BC4-19 BC4-20 BC4-21 BC4-22
Weight(KG) 2280 2605 3435 3765 4460 4930 5400 6000 7350 7850
